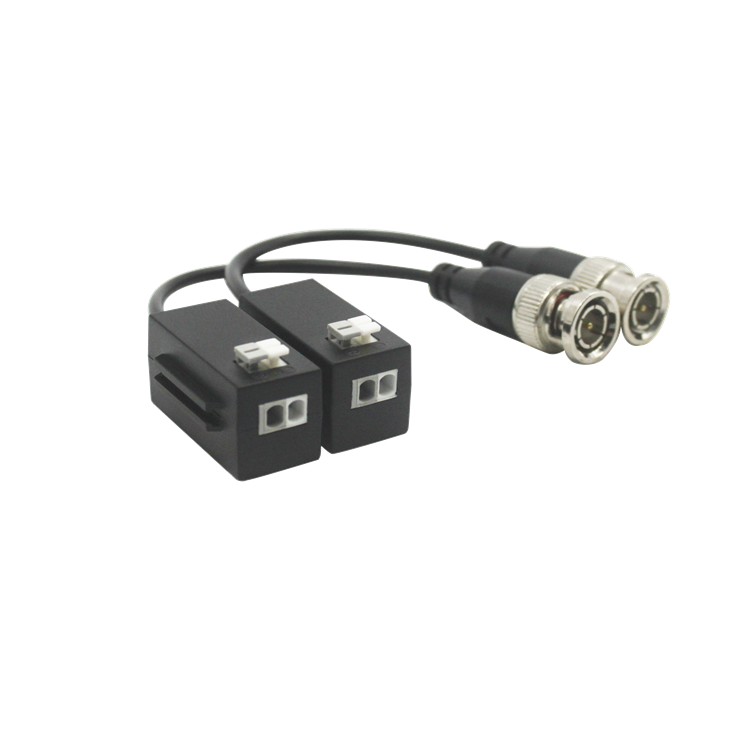

Video Balun-4MP

Video Transmission Device HDCVI Balun Transmission distance Max. 400m Passive 1ch for 1080p Max.250m

1 Edition
200
Model
DH-PFM800-4MP
Manufacturers
DAHUA
Place of Origin
China
Weight
0.05Kg
e-Money
0.7%
Shipping
COD

This product is a cash-only items.

Quantity
UP DOWN

Add to Cart Wish List Buy now

Model PFM800-4MP
Properties
Transmission Signal 1 channel
Transmission Distance HDCVI
720P: max.400m(1312.34ft)
1080P: max.250m(820.21ft)
4MP: max.200m(656.17ft)
Category Type UTP CAT 5E/6
Video Transmission Properties And Port
Coaxial Video Connector BNC-M
Twisted-pair Video Connector Push-terminal
Compatible Format HDCVI/AHD/TVI/CVBS
Resolution 720P/1080P/4MP
Anti-interference ＞60db
Protection
ESD 1a contact discharge electricity level 3
1b air discharge electricity level 3
Per: IEC61000-4-2
Coaxial Cable Connector 2KV(common-code) Per: IEC1000-4-5
UTP Cable Connector 2KV(different-code), 4KV(common-code), Per: IEC1000-4-5
Impedance
BNC Male 75 ohms
UTP Cable 100 ohms
Physical Properties
Dimension(L*W*H) 173mm*21mm*20mm(6.81”x0.83”x0.79”)
Shell ABS
Color Black
N.W. 25g(0.06lb)
Stability
MTBF ＞10000h
Environmental
Operating Temperature -10℃~+55℃(14℉~131℉)
Storage Temperature -20℃~+70℃(-4℉~158℉)
Humidity 0~95%(non-condensing)
