Control Panel/Boxes

Control panel-3⏀(3Phase)/Magnetic-5HP
Add larger image

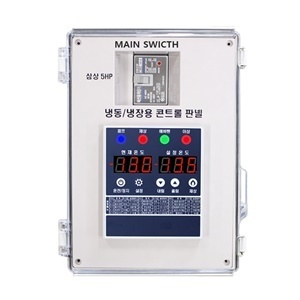

Control panel-3⏀(3Phase)/Magnetic-5HP

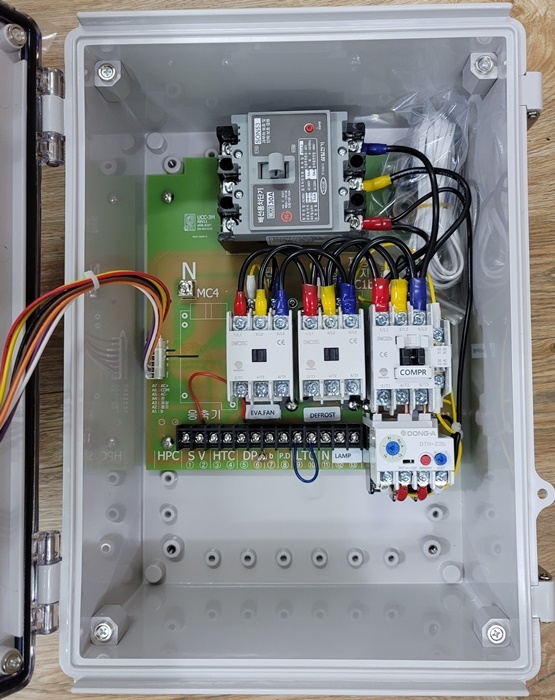

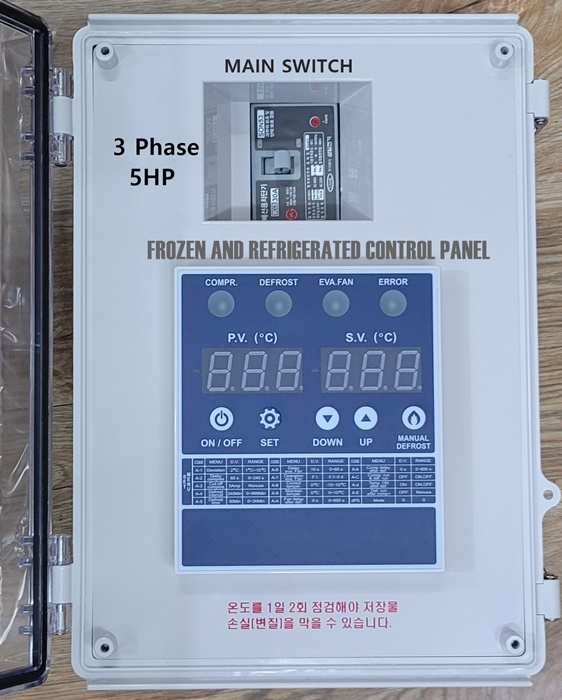

Control panel(4HP, 5HP) Three phase, 220/380V Magnetic type, Eva Fan and Comp’ control Electric heater defrost function

1 Edition
13050
Model
UCC-MT35
Manufacturers
Uriel Electronics
Place of Origin
KOREA
Weight
7.50Kg
e-Money
0.7%
Shipping
COD

This product is a cash-only items.

Quantity
UP DOWN

Add to Cart Wish List Buy now

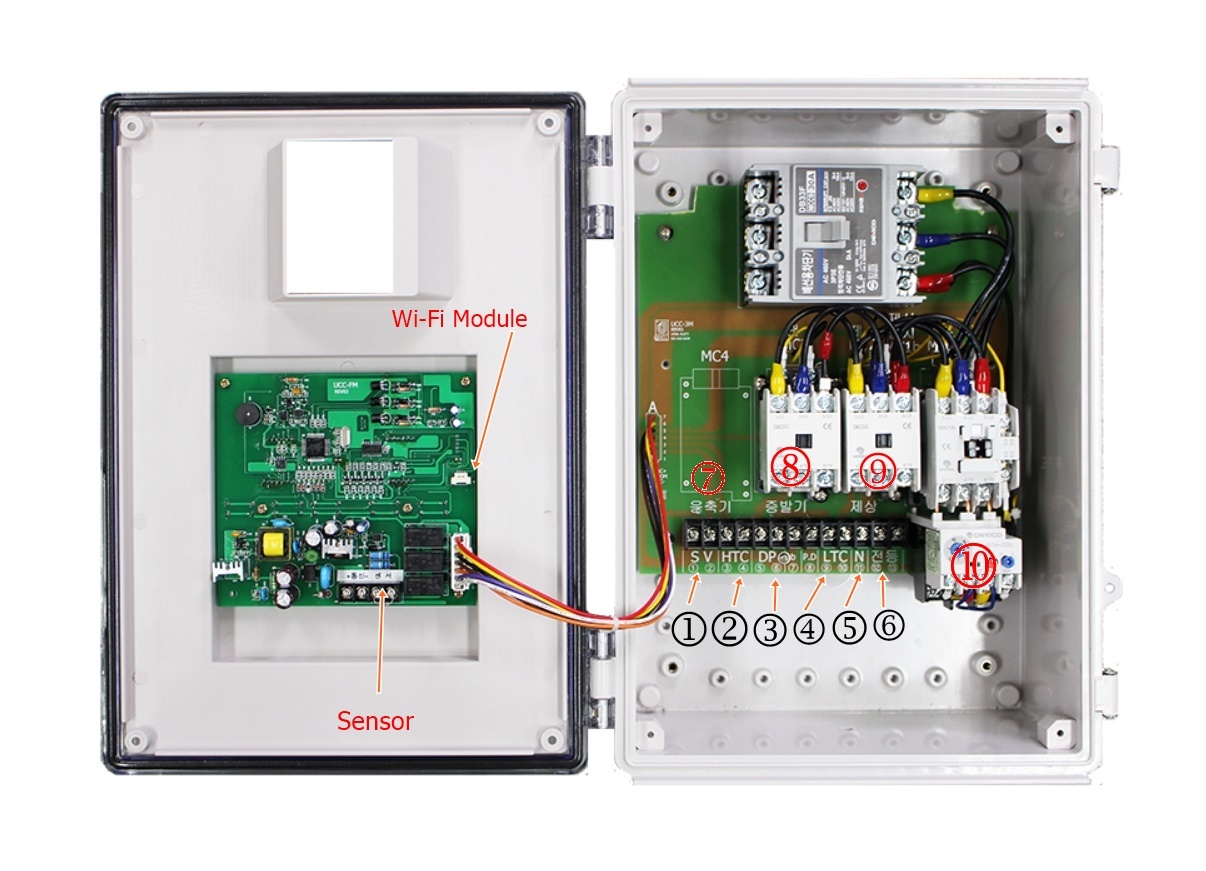

① Solenoid valve: Connected to the solenoid valve installed at the back

    of the unit cooler

② HTP: If you do not want to use the function, short the 2 contacts.

③ DP:Connection to the pressure gauge terminal block of the condensing unit

  (If you do not want to use the function, short the 2 contacts.)

④ LTC: (If you do not want to use the function, short the 2 contacts.)

⑤ N: N-phase electricity

⑥ 220V AC: Connect the atmospheric(air) valve and the light.

⑦ Fan of condensing unit

⑧ Fan of evaporator

⑨ Heater for defrost

⑩ Compressor

#Control Panel for Walk in Freezer, ##Control Panel for Walk in Chiller, #Control Panel for Cold Room, #Remot Control for Walk in Freezer
