Plumbing(Tubing) method for cold room (Installed upper and under)

*Solenoid valve installation location

*Trap installation location

*Installation distance and interval

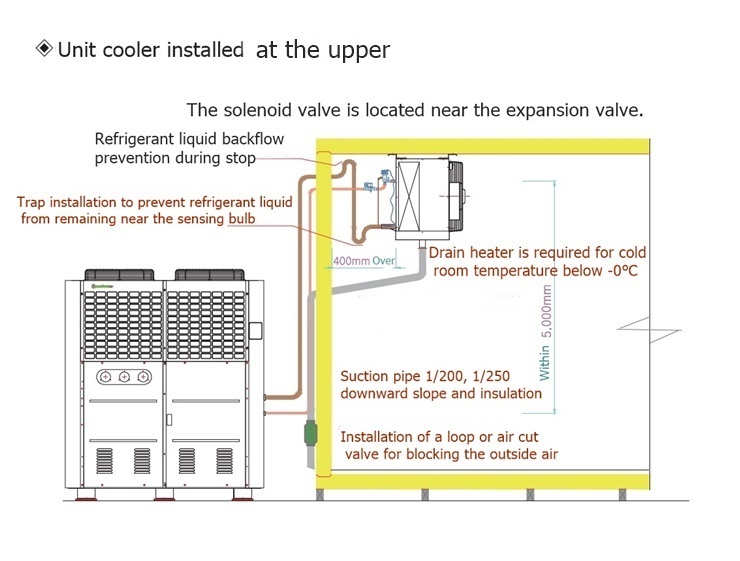

* Condesing unit installed at the under.

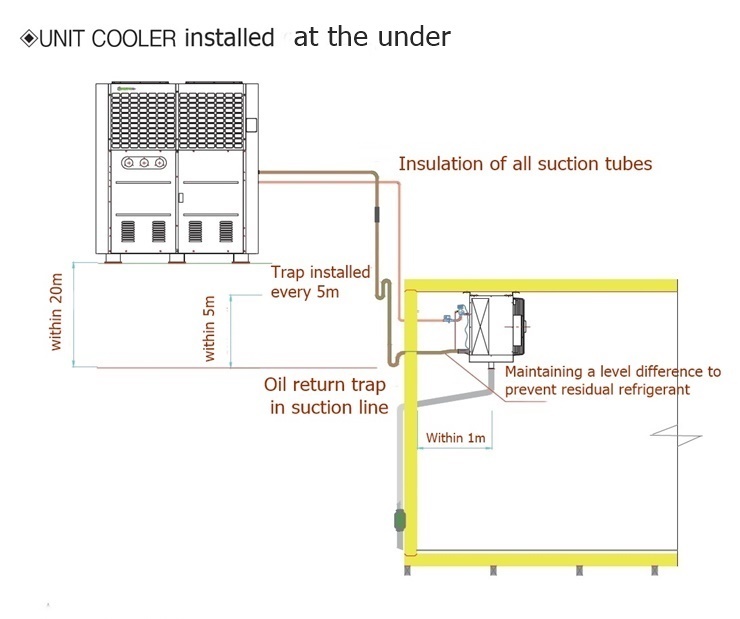

* Condensing unit installed at the upper.
