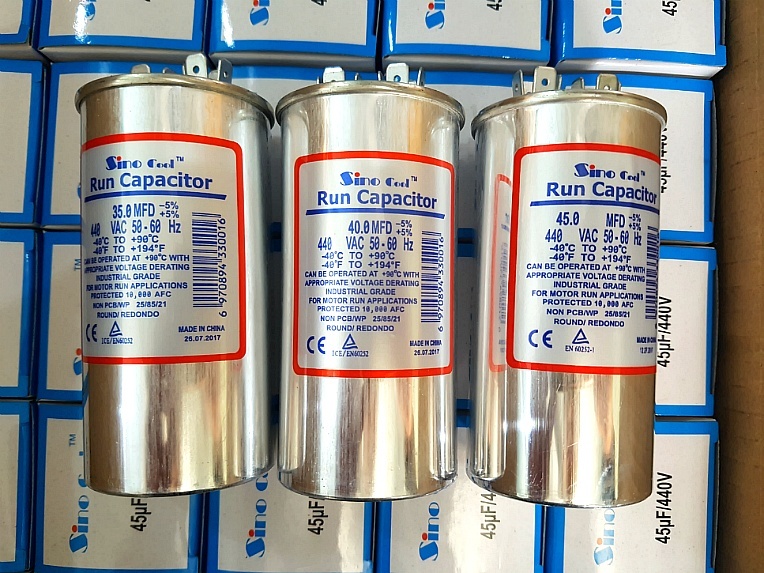

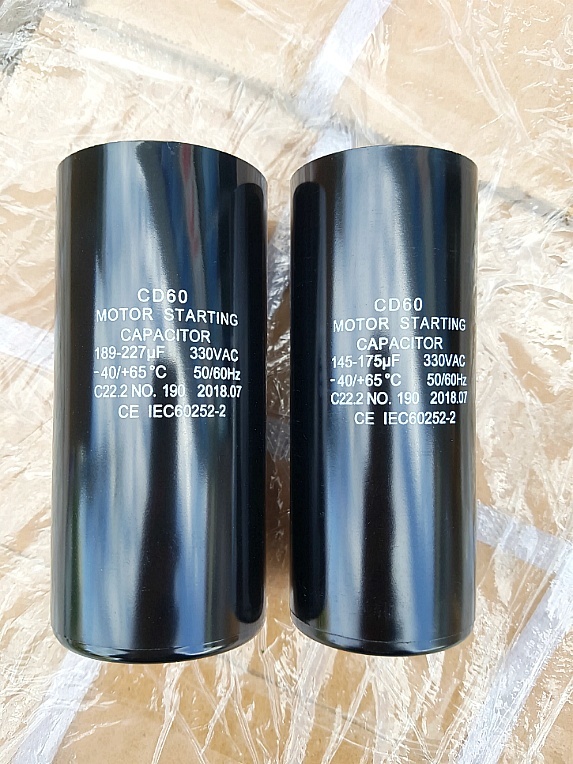

Single-phase compressor start and run capacitor capacity
*How to measure whether the capacitor is normal/defective.
1. After disconnecting the capacitor, be sure to discharge the terminal and the terminal when discharging and re-testing.
2. Set the tester as a resistor (Ω*1000) and take a picture of the terminals and terminals.
*. Normal: Normal when the tester needle goes up to 0 and goes down to ∞.
*. Bad: The needle doesn't move, or if it goes to 0, it's bad.

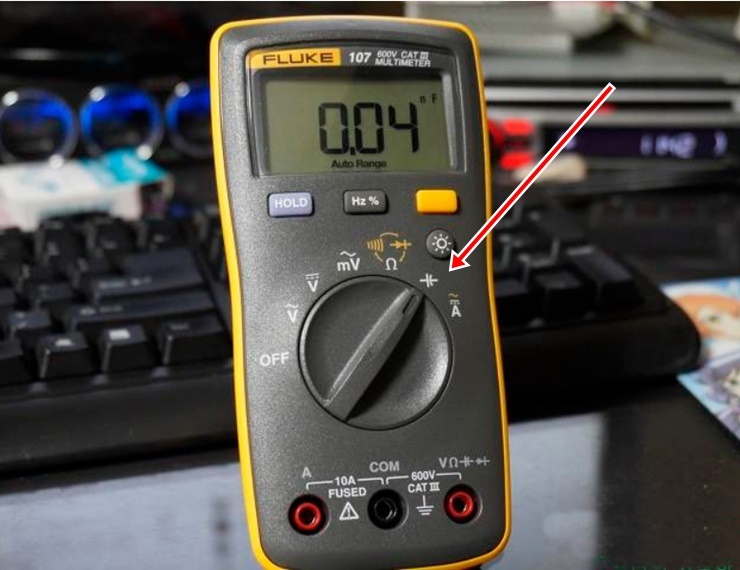

When the tester has a capacitor measurement function:
)
|
ZR18K3 |
1.5 HP |
30㎌/370VAC |
Copeland Scroll |
|
ZR24K3 ZB15 |
2 HP |
40㎌/370VAC 35MFD |
Copeland Scroll |
|
ZR36K3 ZB21 |
3 HP |
45㎌/370VAC 40MFD |
Copeland Scroll |
|
ZR48K3 ZB29 ZB38 |
4 HP 4 HP 5 HP |
60㎌/370VAC 45MFD 45MFD |
Copeland Scroll |
)
)
)
