[Control panel] 3HP function and terminal block description[1HP~3HP/Magnetic type]
First Egpis Hits:2625 49.150.168.220
2022-02-18 11:40:55
http://www.freezer.kr/bbs/customer/10692 URL COPY

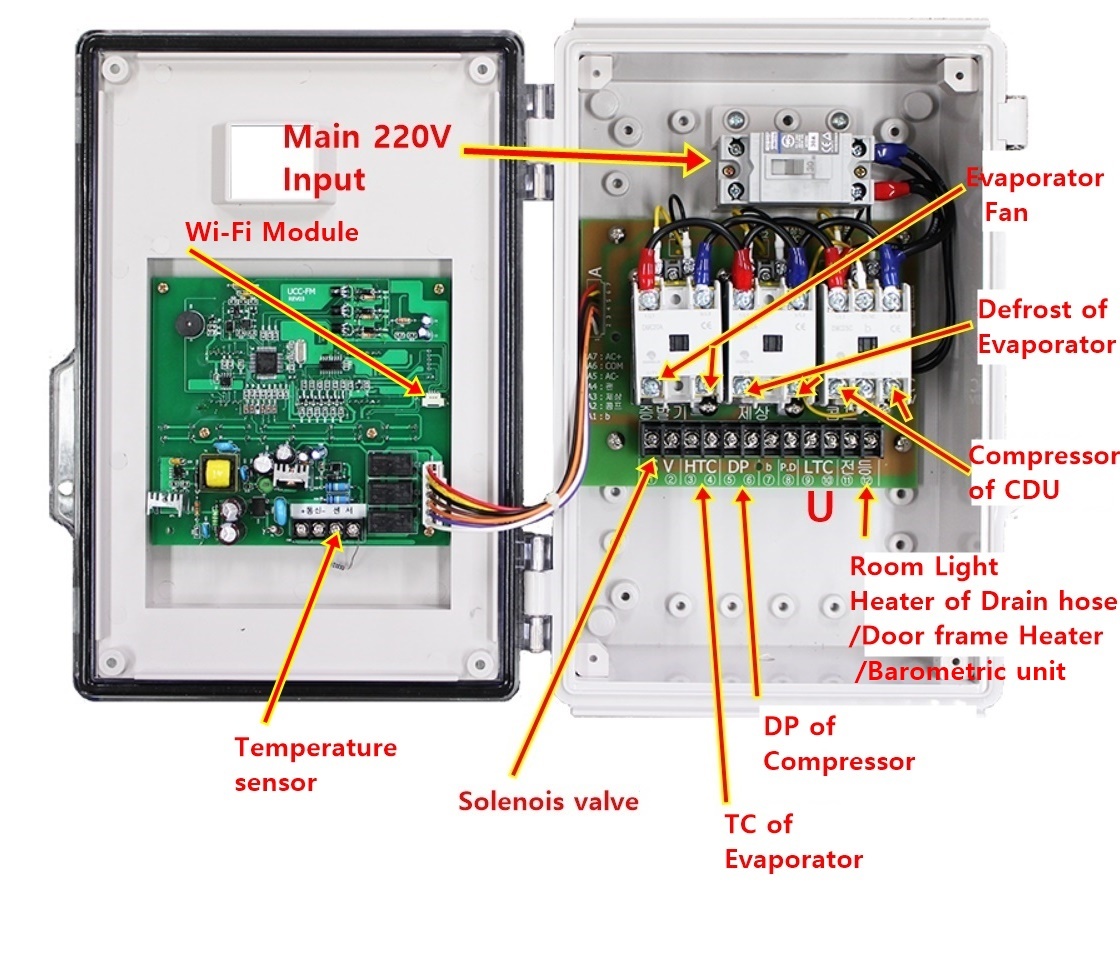

Control panel 3HP Magnetic type

Funtion and Terminal block descriptions

① Sensor: Indoor Sensor

② DPS:Connection to the pressure gauge terminal block of the condensing unit

(If you do not want to use the function, short the 2 contacts.)

③ HTC:Connected to the temperature control switch(T.C) of the unit cooler

  (If you do not want to use the function, short the 2 contacts.)

④ Compressor:Connected to the compressor in the condensing unit

⑤ Defrost: Connected to the heater wire in the unit cooler

⑥ Eva Fan: Connection to the fan in the unit cooler

⑦ Solenoid valve: Connected to the solenoid valve installed at the back of the unit cooler

⑧ 220V AC: Connect the atmospheric(air) valve(Baromeric unit) and the light/Heater.(The drain heater/door frame heater can be connected together with the evaporator.
