U-Trap installation of drain hose and suction tube.
First Egpis Hits:4041 49.150.86.72
2022-04-07 11:03:24
http://www.freezer.kr/bbs/customer/10749 URL COPY

1. Why should the drain hose be installed as a U-Trap?

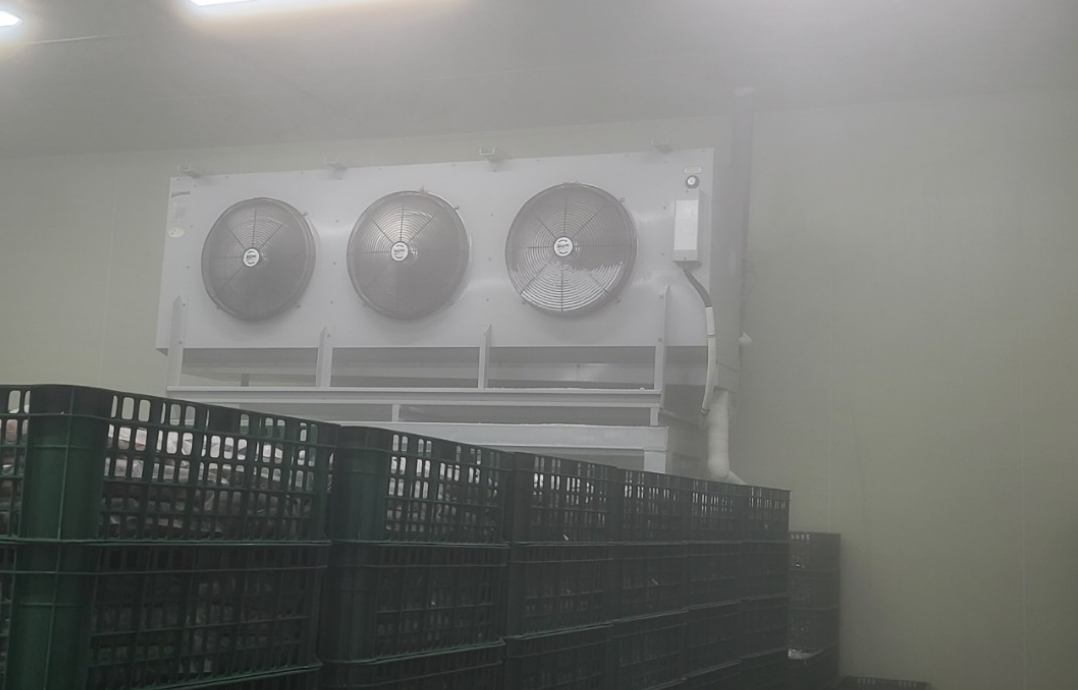

*Air is drawn in by the fan of the Evaporator, and condensation and mist are formed inside.

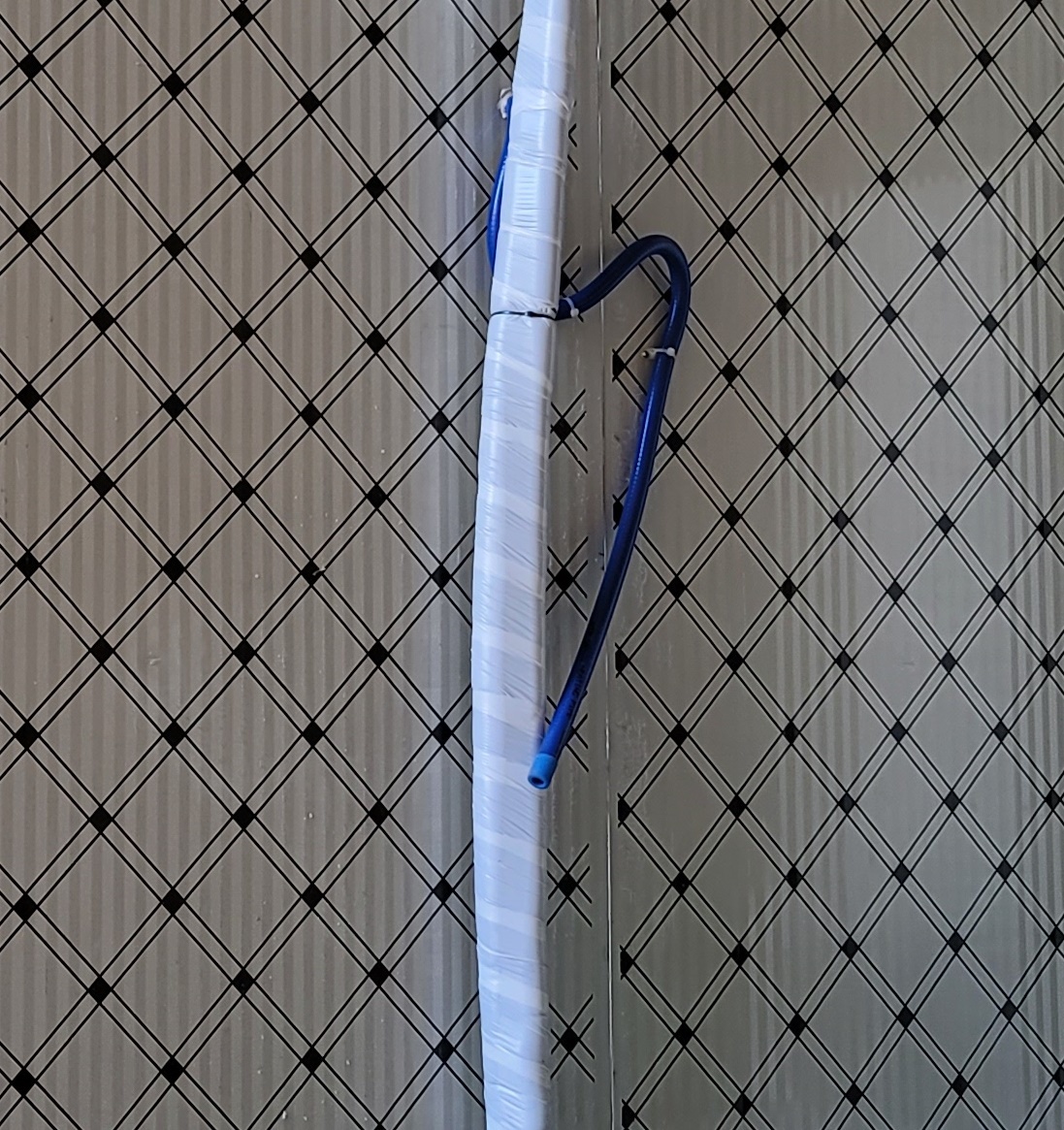

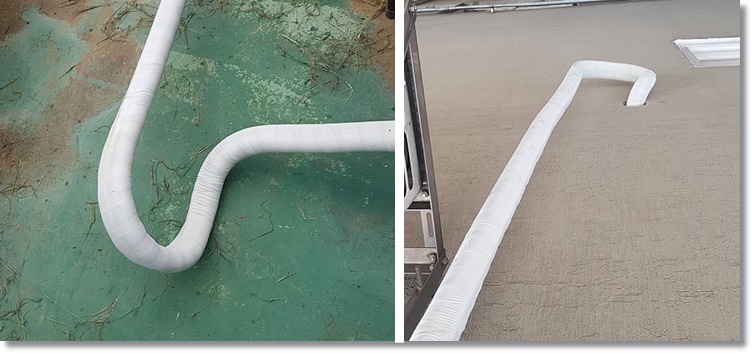

*Method: Bend the drain hose into a U shape.

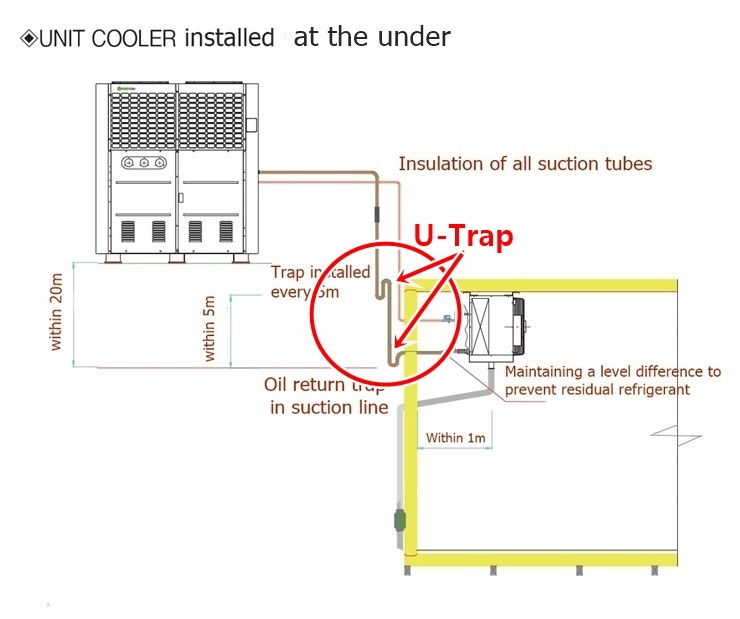

2. When the condensing unit is installed higher than the evaporator, it traps the suction line in a U shape also.

*method:
