[Walk in Freezer, Chiller] How to "HTC" Connections
)

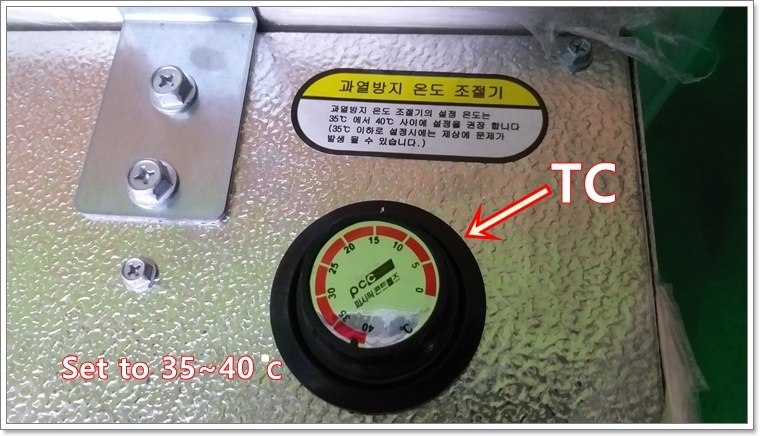

To use TC in connection with the HTC (TC) terminal of the control box, the temperature must be set to 30 to 35 degrees.)
)
)

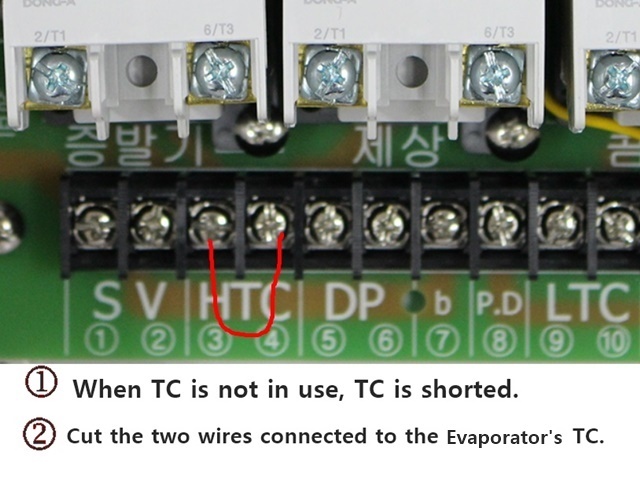

To avoid overheating TC, short the HTC at the terminal block and separate the TC (temperature controller) wire of the evaporator.
)
)

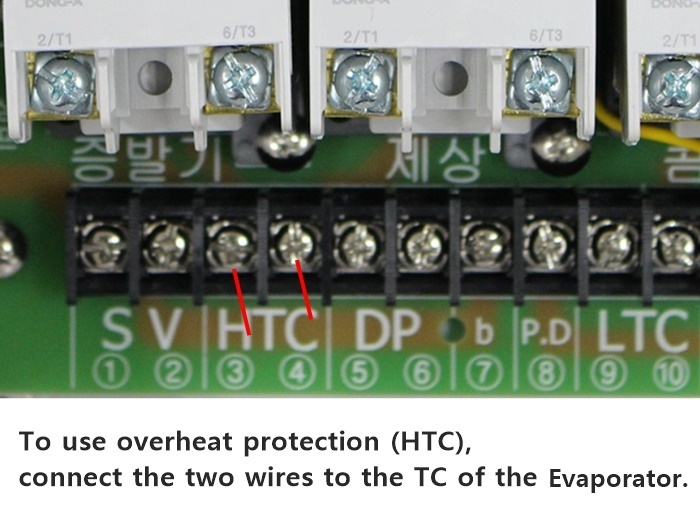

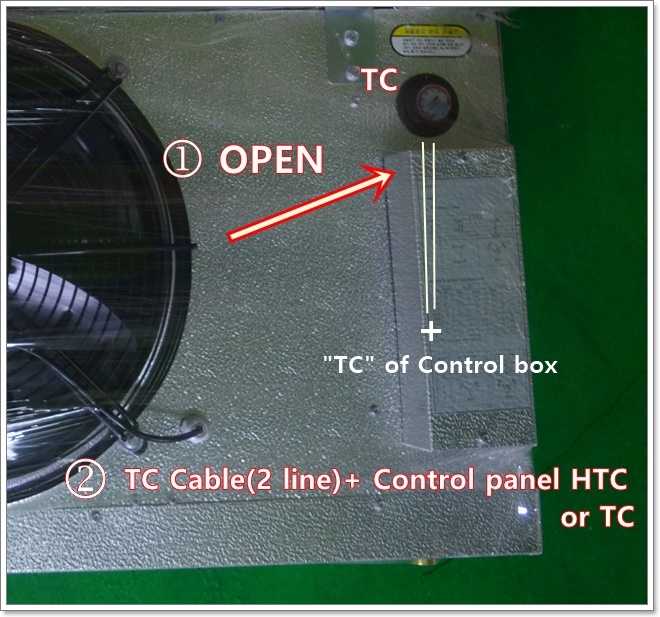

To use overheat protection (HTC), connect the two wires to the TC of the evacuator.

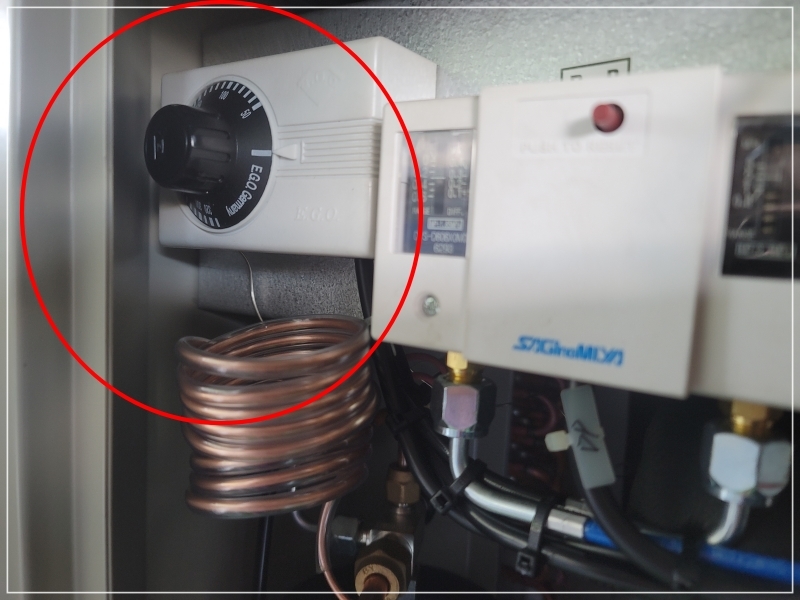

*How to control the temperature of the injector to prevent compressor overheating
)
*90 to 100 degrees is appropriate. If not in use, just turn off the thermostat.
*When the temperature of the scroll type compressor is high,
the injector sometimes operates, so the temperature must be set slightly higher.
