[Walk-in Freezer] Sensig bulb of Thermostatic Expansion Valve mounting position
First Egpis Hits:2485 180.191.71.188
2020-05-10 16:05:39
http://www.freezer.kr/bbs/customer/9303 URL COPY

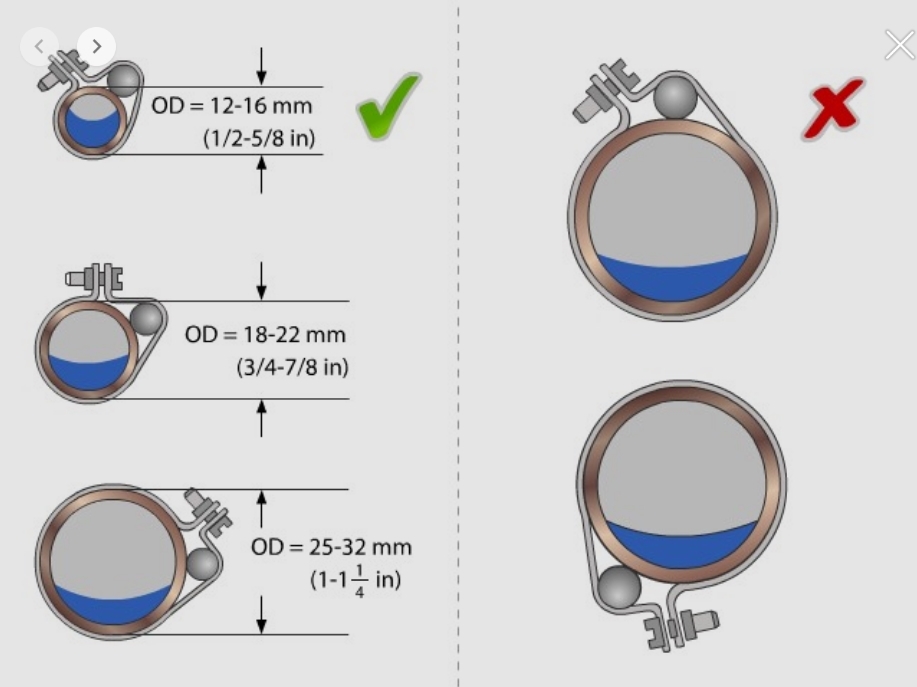

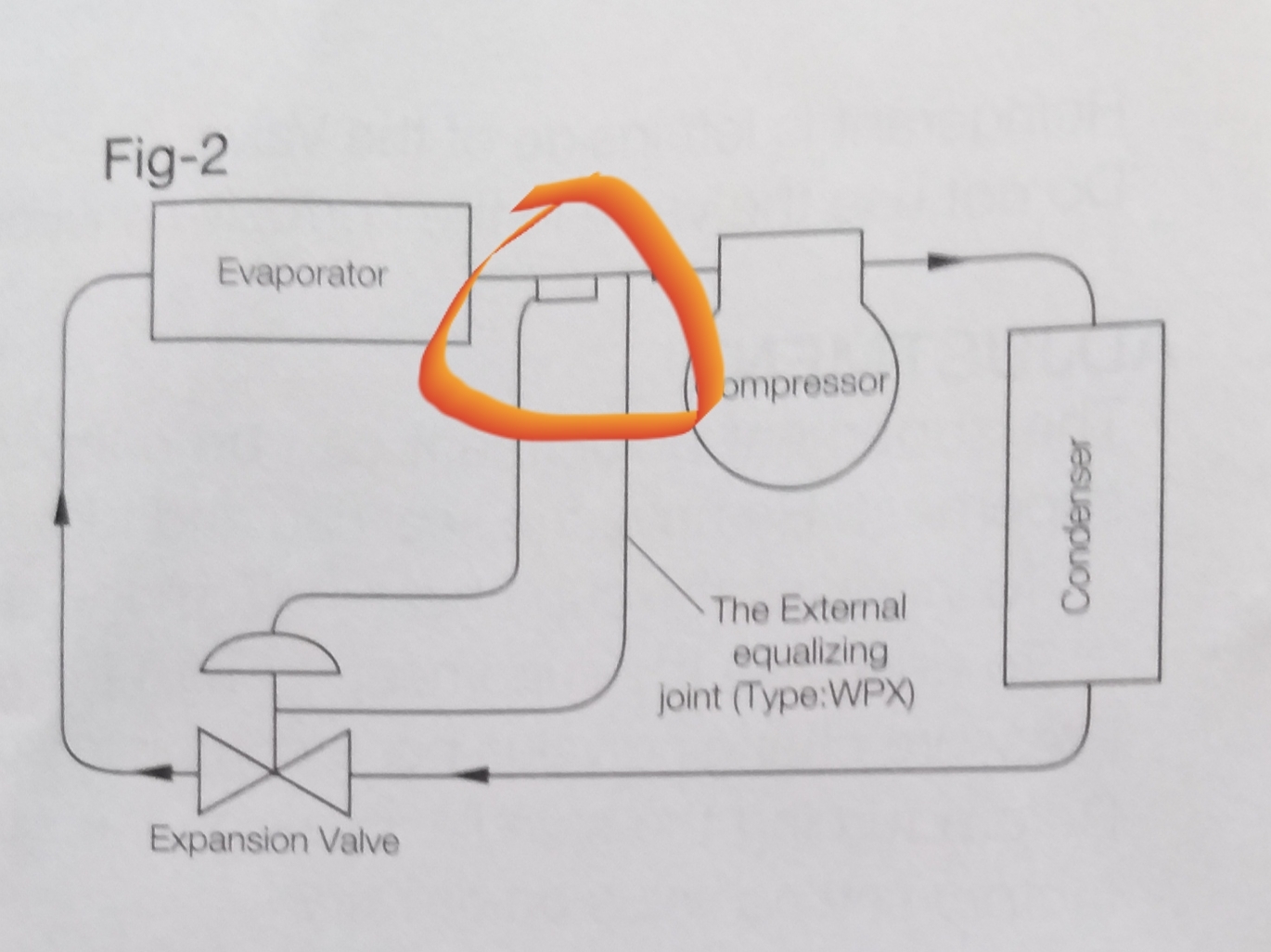

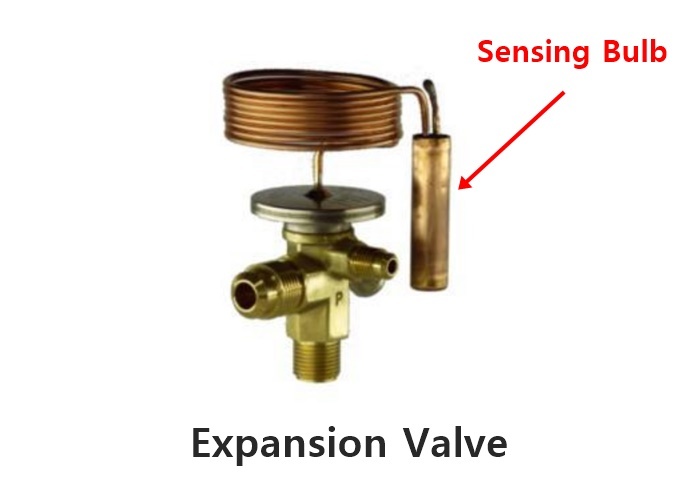

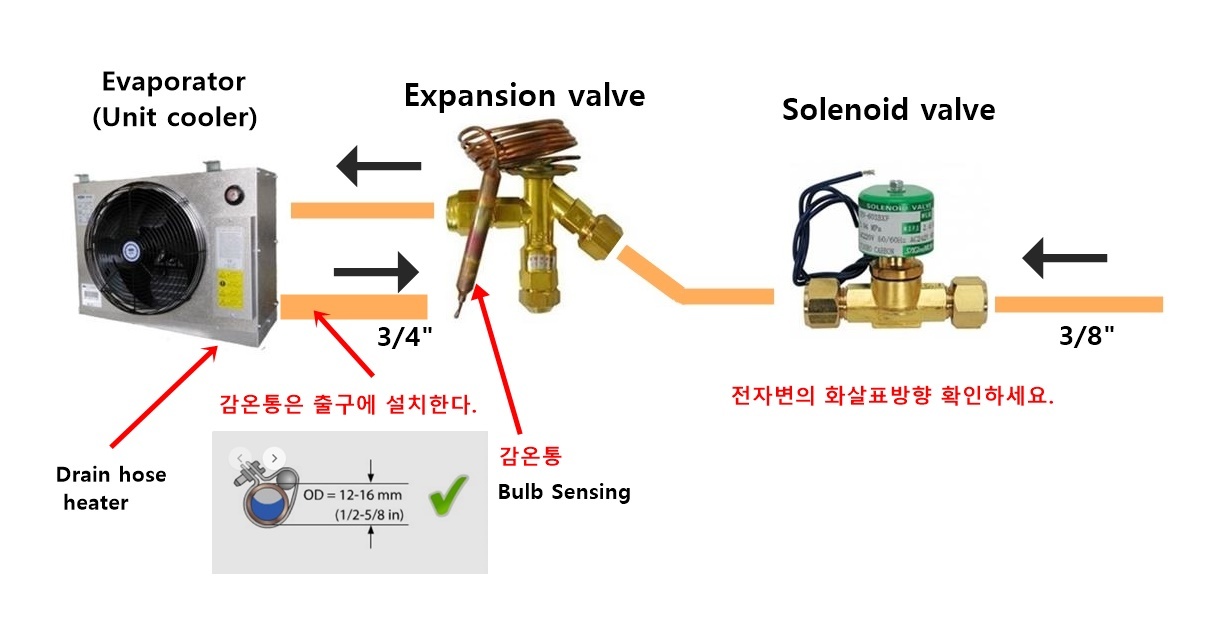

The thermosensor(Sensing bulb) is installed at the exit of Evaporator. It should be attached to the 3/4 position of the tube.


EGPIS INDUSTRIAL MACHINERY TRADING/First EGPIS Merchandise,
Manila 02)8809-2084, Pampanga 045)457-6394, 0927-321-8556
