[Control panel] 3HP Function and terminal block description[1HP~3HP/PCB type]
First Egpis Hits:2679 112.209.78.151
2021-03-31 15:49:13
http://www.freezer.kr/bbs/customer/9716 URL COPY

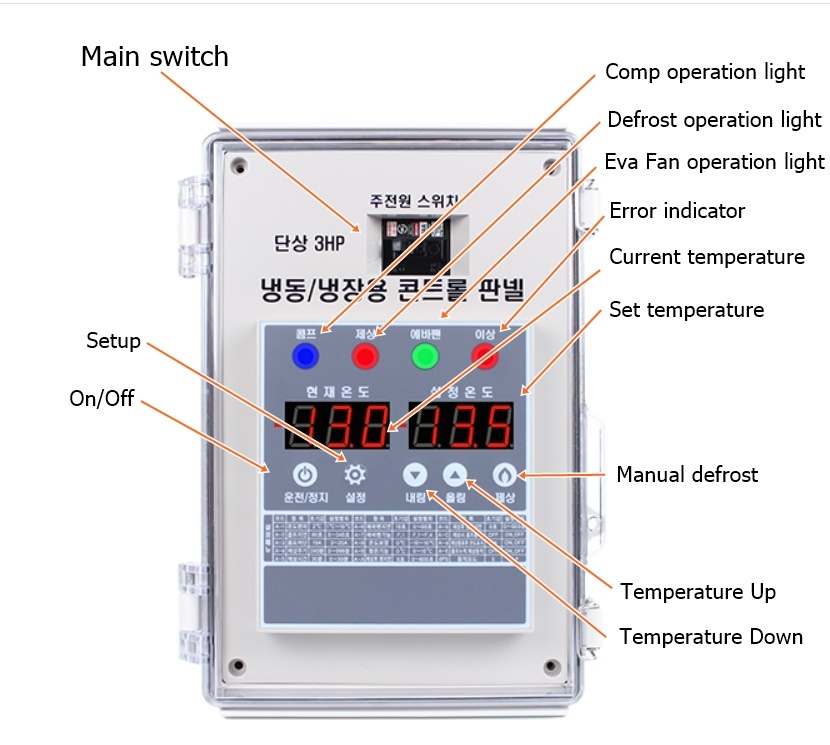

 3HP PCB Type Control panel

Function and terminal block description[1HP~3HP]

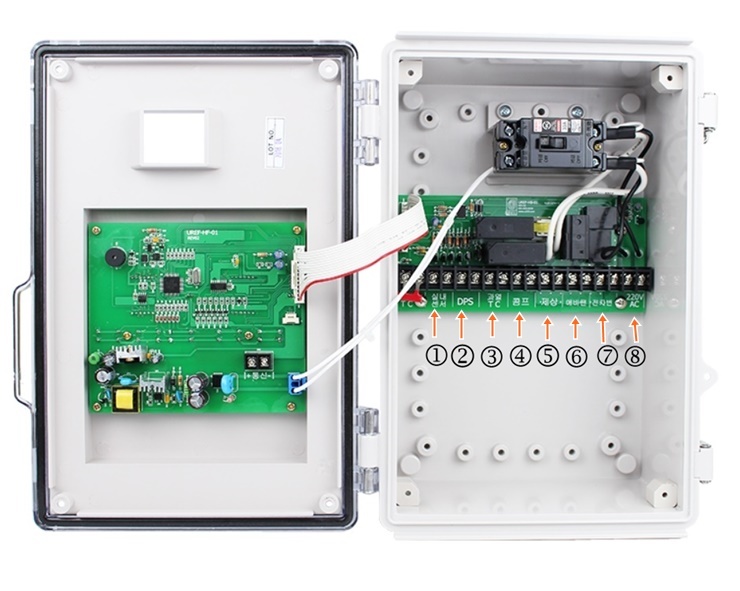

① Sensor: Indoor Sensor

② DPS:Connection to the pressure gauge terminal block of the condensing unit

(If you do not want to use the function, short the 2 contacts.)

③ TC:Connected to the temperature control switch(T.C) of the unit cooler

  (If you do not want to use the function, short the 2 contacts.)

④ Comp':Connected to the comp' in the condensing unit

⑤  Defrost: Connected to the heater wire in the unit cooler

⑥ Eva Fan: Connection to the fan in the unit cooler

⑦ Solenoid valve: Connected to the solenoid valve installed at the back of the unit cooler

⑧ 220V AC: Connect the atmospheric(air) valve and the light.
