[Control panel] 7.5HP Function and terminal block description[4HP~7.5HP/3phase]
First Egpis Hits:2585 112.209.78.151
2021-03-31 16:16:43
http://www.freezer.kr/bbs/customer/9717 URL COPY

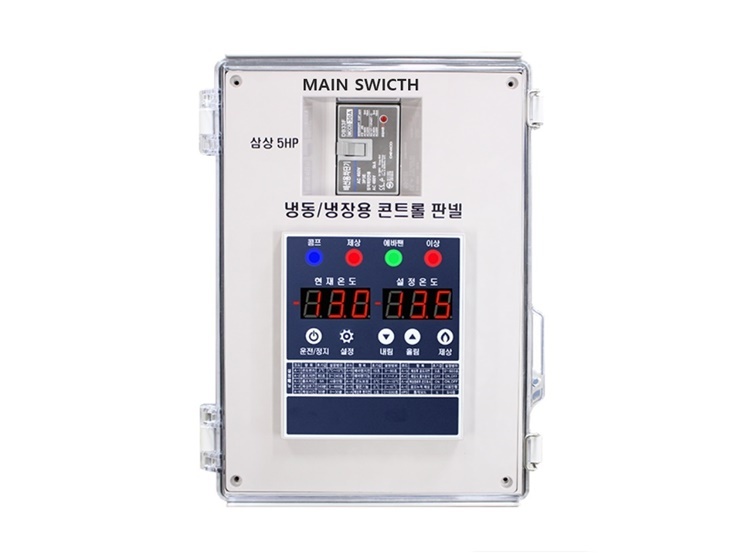

7.5HP 3phase, Control panel

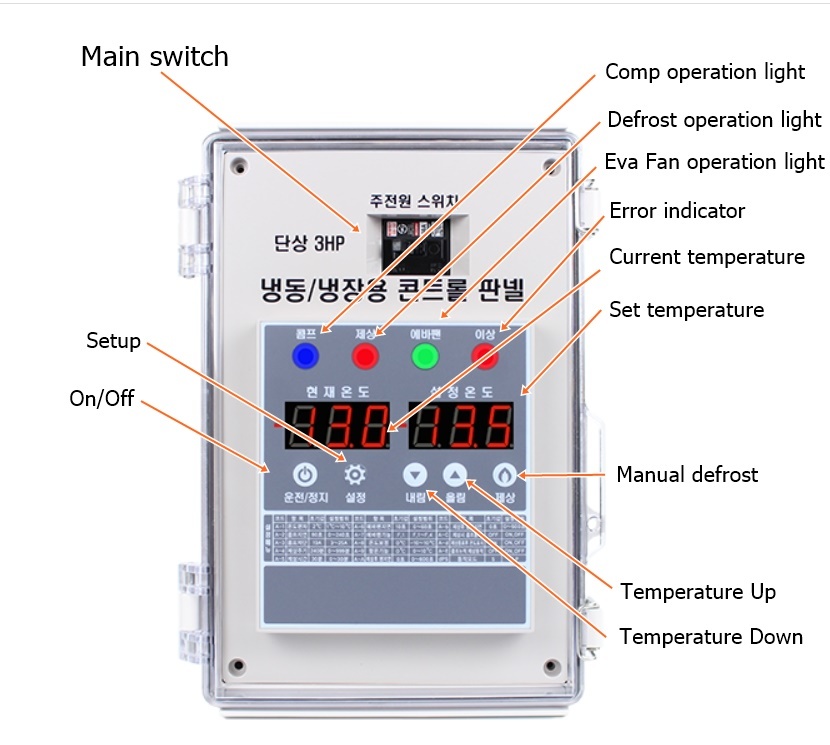

Function and Terminal block descriptions

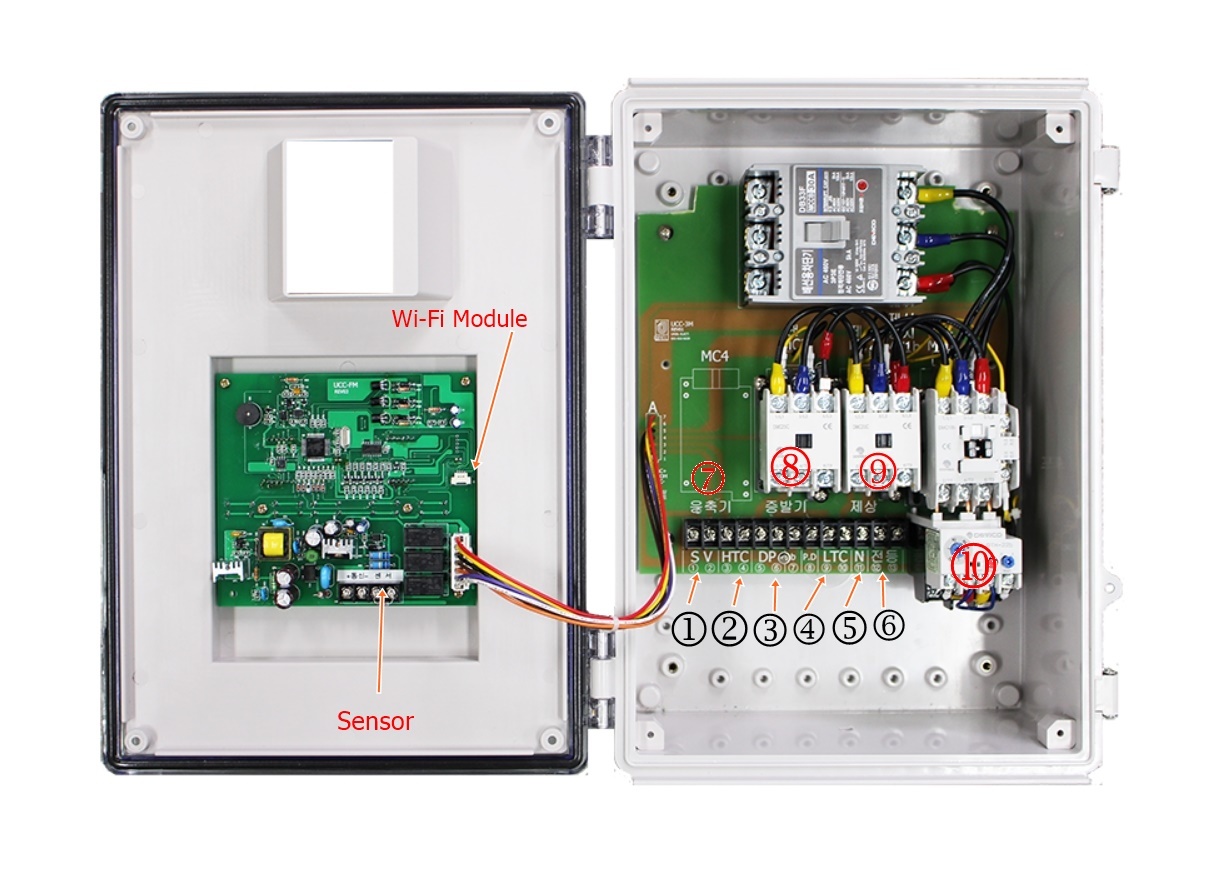

① Solenoid valve: Connected to the solenoid valve installed at the back of the unit

cooler

② HTP: If you do not want to use the function, short the 2 contacts.



③ DP:Connection to the pressure gauge terminal block of the condensing unit

(If you do not want to use the function, short the 2 contacts.)

④ LTC: (If you do not want to use the function, short the 2 contacts.)



⑤ N: N-phase electricity

⑥ 220V AC: Connect the atmospheric(air) valve and the light.

⑦ Fan of condensing unit

⑧ Fan of evaporator

⑨ Heater for defrost

⑩ Compressor
