[Control panel] 5HP function and terminal block description[4HP~5HP/Single phase]
First Egpis Hits:2896 112.209.78.151
2021-03-31 16:59:49
http://www.freezer.kr/bbs/customer/9718 URL COPY

5HP Control panel

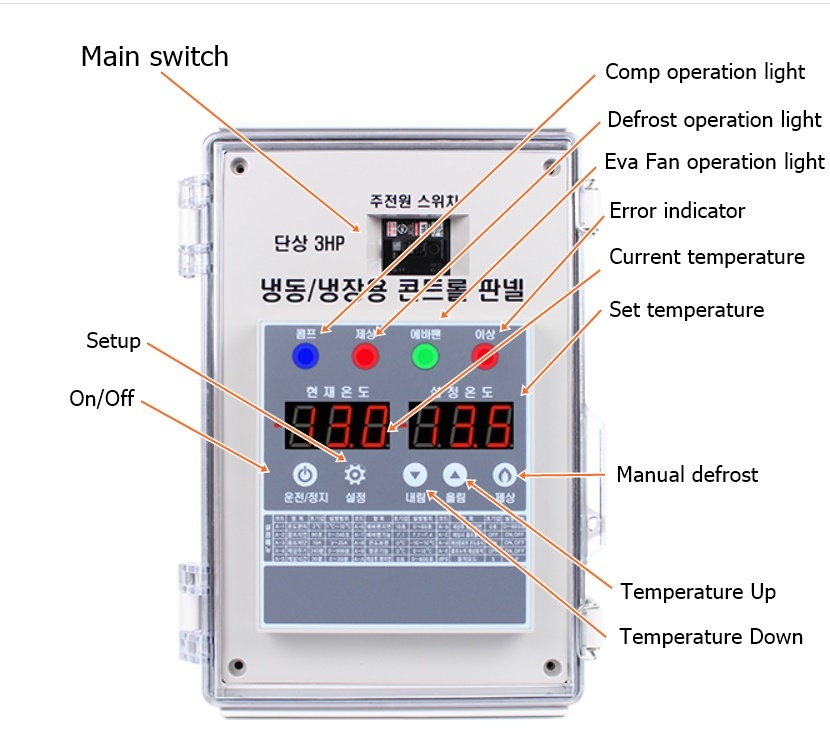

Function and Terminal block descriptions(Single phase)

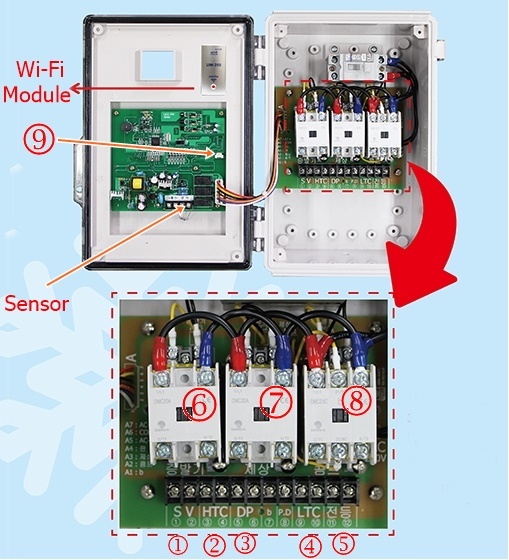

① Solenoid valve: Connected to the solenoid valve installed at the back of the unit

cooler

② HTP: TC:Connected to the temperature control switch(T.C) of the unit cooler

  (If you do not want to use the function, short the 2 contacts.)



③ DP:Connection to the pressure gauge terminal block of the condensing unit

(If you do not want to use the function, short the 2 contacts.)

④ LTC: (If you do not want to use the function, short the 2 contacts.)



⑤ 220V AC: Connect the atmospheric(air) valve and the light.

⑥ Fan of evaporator

⑦ Heater for defrost

⑧ Compressor
